Beschrijving

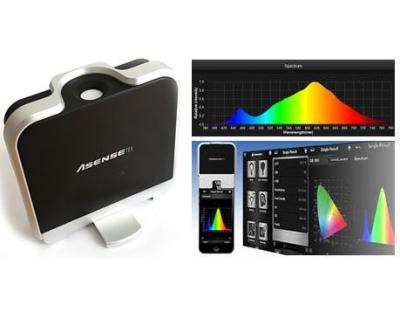

Lighting Passport High Intensity has all the functions and features of Lighting Passport family, and is specifically designed for applications with high illuminance level: Grow Light & Plant Factories, Studio & Film Lighting, Outdoor Lighting, High-bay & Low-bay for Warehouses, Storage Lighting, and etc… with a measurable illuminance range from 20~200,000 lux and reliable chromaticity from 200~200,000 lux.
Why Lighting Passport High Intensity?
The specification of light fixtures required for special lighting differs greatly from general, lighting applications; it requires more advanced and sophisticated device. In the old days, you would need a whole bunch of different meters to do the job; but now, one Lighting Passport High Intensity offers you the most exquisite and pleasant user experience.
With “Lighting Passport High Intensity,” all you need is one meter, and all for one. Millions of professional data on the go!
※ It is necessary to use in combination with Spectrum Genius series App.
※ Lighting Passport Hight Intensity can be used with the device of the iOS 10 and above version, as well as the device of the Android 5.0 and above version with BT4.0 (BLE, Bluetooth Low Energy) module. See if your device works with Spectrum Genius APP by checking.
Who Needs One?
Agricultural Lighting
■ Plant Factory: Find the best-matched grow lights for plants in no time, accelerating the cycle of growing.
■ Grow Light Development: Self-inspection and evaluation, maintaining a unified and consistent light quality and performance.
Studio Lighting
■ Light Quality Check: Ensure the light quality of shooting during pre-production, accelerating the filming time while reducing the cost at post-production.
■ A Portable Gaffer’s Assist: Instant measurement for TLCI, TLMF, CRI, CQS, CCT, and etc…
Industrial Lighting
■ Choose The Best High-Watt Fixtures: Avoid unnecessary wrong decisions, saving time and cost.
High energy consumption lamps manufacturer
■ Sharp Eyes on The Light Quality: Get complete and professional parameters during production or Quality Control.
APP Control System, Your One-for-all Choice.
With the APP control system, Lighting Passport Pro can be applied to various of lighting industries,currently Lighting Passport Pro has 5 APPs available, providing users different features. When new standards and parameters releasing in to the market in the future, you don’t have to send your device back to us for software or firmware upgrade, just simply update your APP and you’re set to go.
 |
 |
 |
 |
 |
Lighting Design and Planning: Designers can measure the uniformity of the overall lighting design, and compare the difference between “before and after”.
■ APP Introduction
■ APP Download Link: AppStore, GooglePlay
Lighting Fixtures – Quality Control: Manufacturers can simultaneously measure the information of multiple light fixtures, and do the quality control according to the their own requirements.
■ APP Introduction
■ APP Download Link: AppStore, GooglePlay
Studio Lighting and Stage Lighting: Gaffers can quickly predict the color shift of studio light on the screen provide adjustment information, and get filter – selecting suggestions.
■ APP Introduction
■ APP Download Link: AppStore
Home Gardening and Plant Factory: User can easily check the suitability of the light source for their targeted plants, then record the growing changes.
■ APP Introduction
■ APP Download Link: AppStore, Google Play, Wandoujia
Harmful Light Prevention: User can get the transmittance rate at every 5 nm and further compare the results at various tested objects.
■ APP Introduction
■ APP Download Link: AppStore
Lighting Passport High Intensity SPEC
| Product Type | Lighting Passport High Intensity |
|---|---|
| Size | Width ︰ 68.5 mm Depth ︰ 17 mm Height ︰ 56 mm |
| Net Weight | 76.5 g ± 1 g |
| Wavelength Range | 380 ~ 780 nm |
| Illuminance Range | ※Measurable : 20 ~ 200,000 lux ※Reliable Chromaticity : 200~200,000 lux |
| Output wavelength pitch | 1 nm |
| Optical Resolution (FWHM) | 8 nm |
| Repeatability | x, y ︰＜ 0.001 |
| Accuracy (@ 1,000 lux Standard Light Source) |
x, y ：± 0.002 Illuminance：± 3 % CCT ：± 2 % |
| Integration Time | 6 ms ~ 16 s |
| Language (SGM Plus) |
Traditional Chinese, Simplified Chinese, English, German |
| Language (SGM) |
Traditional Chinese, Simplified Chinese, English, Japanese, French, German, Russian, Italian, Turkish, Spanish, Suomi |
| Measurement Mode | Single, Multiple, Continuous Subtract Background |
| Measurement Capability | CCT Duv CIE 1931 CIE 1976 Spectrum Diagram C78.377-2008 IEC-SDCM CRI (Ra) (R1-R8) CRI (Re) (R1-R15) R1 ～ R15 CQS TLCI(Qa) GAI Illuminance Foot Candle PPFD YPFD Peak Wavelength (λp) Dominant Wavelength (λD) Purity SP ratio Flicker Index Flicker Percentage Flicker Frequency Melanopic Lux：Free Circadian stimulus：Public 10 records>>>More Applications ‧Transmittance ‧Agricultural Lighting ‧Studio |
| Key Features | Automatically Record Temperature & Photograph Note Data Filter Auto Connection Auto Dark Calibration Data Comparison WiFi Transfer GPS Orientation Social Media Integration |
| Additional function | 1. TM-30-15 (Rf, Rg & Diagram)：FREE (iOS/Android) APPs：SGM2. Smart Pass (Smart Pass)：20 USD (iOS/Android IAP) APPs：SGM/SGAL/SGS ※ Users can get it for Free just by Emailing your records to at least 3 users. |
| Operating Temperature/Humidity | 0 ~ 35 °C, relative humidity under 80% with no condensation |
| Storage Temperature/ Humidity Range | -10 ~ 45 °C, relative humidity of 85% or less (@ 35 °C) with no condensation |
| APP | SGM Plus SGM SGT SGAL SGS SGS-Tablet |
| Spectrum Genius PC_Standard | FREE |
| Spectrum Genius PC_Advanced |
500 USD |
* Measurement Condition: with NIST traceable light source and instruments.
* ASENSETEK reserves the right to modify the specification of its products without prior notice.
Calibration System includes
■ Low pressure line lamp for wavelength calibration.
■ Lighting Source System with NIST traceable driver(#0501132531 LPS-100)
■ Spectrophotometer for photometric calibration that traces NIST traceable calibration source (#07099996 IES 1000)
Calibration Certificate
Download hier het gegevensblad Lighting-Passport-Overall-Introduction
Download hier het instructieblad LIGHTING-PASSPORT-INSTRUCTION
